10-ft Toilet Container

10-ft Toilet Container

Compact sanitary facilities for sites, events and temporary use

A 10-ft toilet container provides a complete sanitary unit where space is limited but a robust, easy-to-maintain facility is required. The 3 m model is available in combined ladies’ and men’s, ladies’, men’s and accessible configurations for construction sites, events and other temporary facilities. Every version uses the same compact 2,991 × 2,438 mm footprint; the internal layout is selected around the intended users and site conditions.

Choose the layout around the users

The combined configuration provides separate ladies’ and men’s areas within one unit. Dedicated ladies’ and men’s versions are also available where the expected user profile calls for a different fixture arrangement. An accessible configuration can be supplied, with its internal arrangement and complete access solution confirmed against the site and user requirements before the offer is finalised.

Prepared for water, wastewater and electrical service

The 10-ft sanitary family includes site water and wastewater connections and a standard electrical installation with 400 V / 32 A five-pin CEE inlet and outlet, distribution board, lighting, switches and sockets. Heating and hot-water equipment remain optional. Where fixed connections are unavailable, freshwater and wastewater tanks can be planned as separate accessories.

A durable sanitary unit for repeated use

Unlike a basic portable toilet, the container format provides an enclosed, weather-resistant sanitary space with robust fittings and cleanable internal surfaces. It is well suited to projects and events that need dependable sanitary capacity for more than a brief visit, while remaining compact enough for constrained sites.

From configuration to site placement

CHV helps match the layout to the expected users, operating period and site infrastructure. Transport, positioning and the required site interfaces are considered together so the selected unit can be delivered as a workable sanitary solution rather than an isolated product. The confirmed configuration, optional equipment and site responsibilities are documented in the offer.

Buy or rent for the required period

This product is available to purchase in the configuration that suits the intended use. For temporary requirements, CHV also provides toilet containers for rent. We can advise on layout selection, optional equipment, transport and the practical requirements at the installation site.

10-ft toilet-container configurations

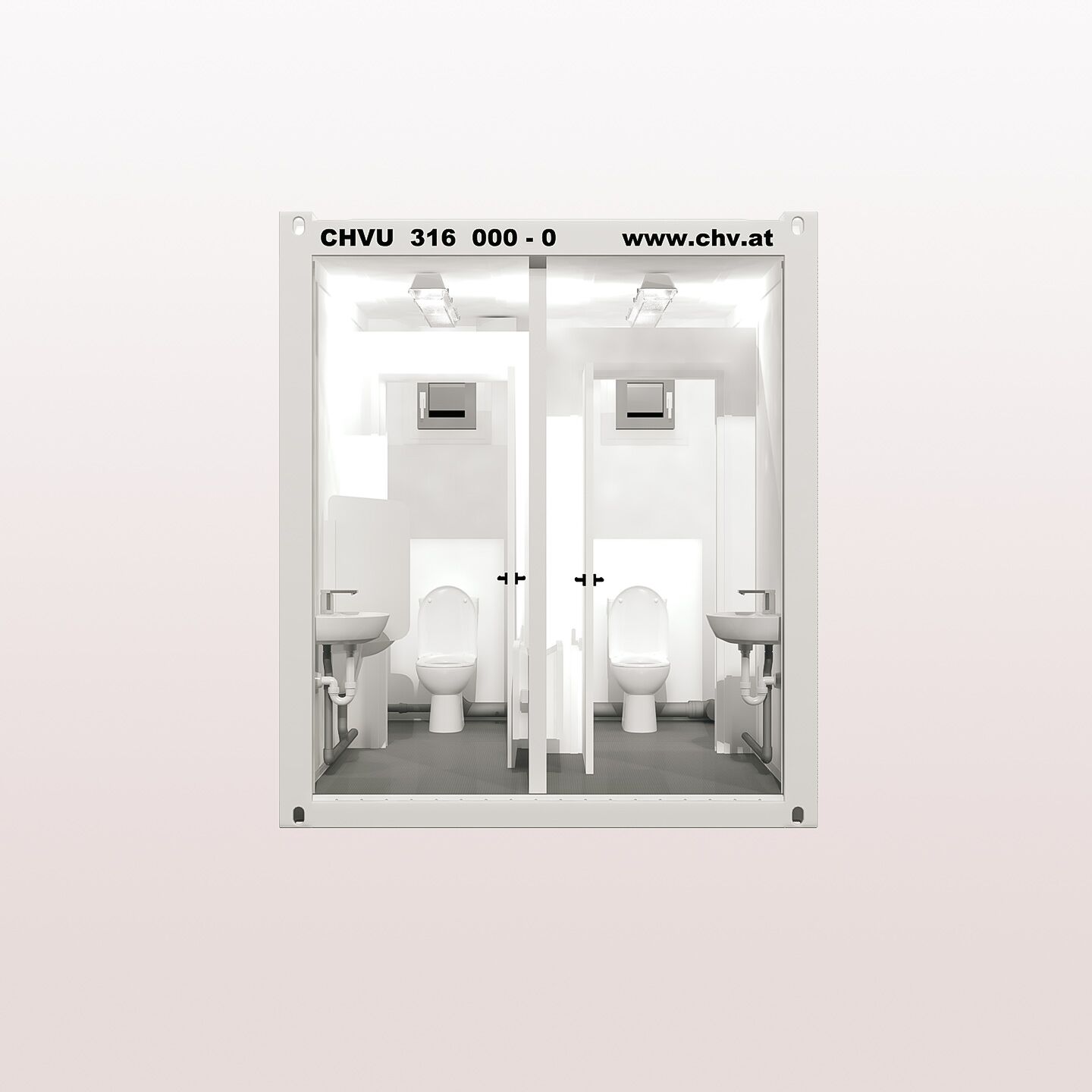

Interior of a 10-ft combined ladies’ and men’s toilet container

Combined ladies’ and men’s

Separate user areas within one compact unit. The exact cubicle, washbasin and urinal arrangement is confirmed for the selected configuration.

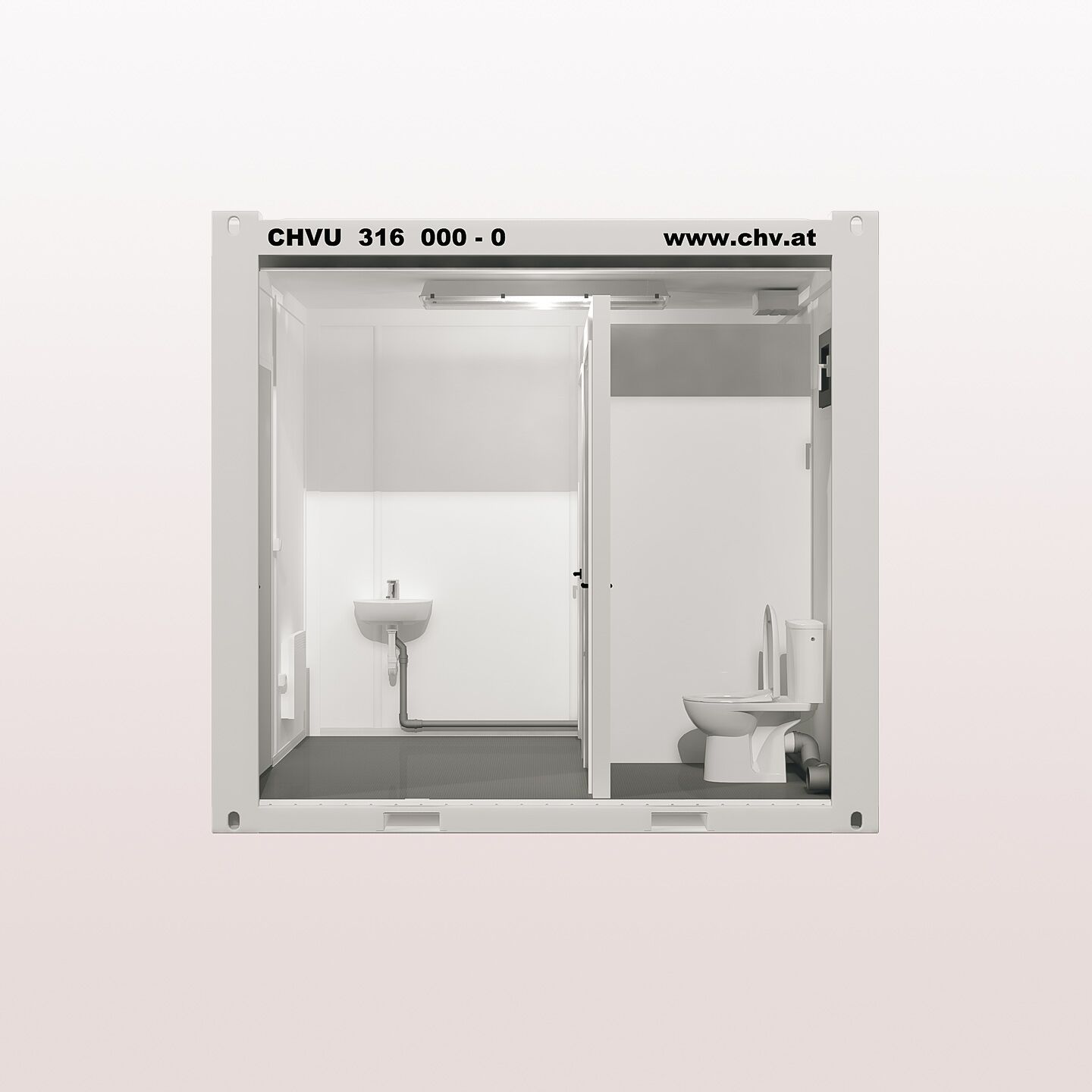

Ladies’ configuration

A dedicated ladies’ layout with WC cubicles and washbasins, configured for the intended user capacity. Hot-water equipment remains optional.

Interior of a 10-ft men’s toilet container

Men’s configuration

A dedicated men’s layout combining WC and urinal facilities with washbasins. The final arrangement is confirmed for the selected model.

Floor plan of an accessible 10-ft toilet container

Accessible configuration

An accessible configuration is available. The internal arrangement and complete access solution are confirmed against the intended site and user requirements before supply.


Need a temporary solution instead?

10-ft toilet containers are also available to rent

Technical data for toilet containers

CHV toilet containers are available as compact single cabins and full-size 10- and
20-ft sanitary units. The dimensions below are external dimensions. The selected
layout determines the final internal arrangement and fixture specification.

MODEL SIZE / LAYOUT FLOOR PLAN EXTERNAL DIMENSIONS L × W × H APPROX. AREA
CHV-060WC 5 ft / 1.45 m
Single WC cabin
Floor plan: 5-ft single WC cabin 1,450 × 1,300 × 2,591 mm 1.9 m²
CHV-150WCDH 10 ft / 3 m
Combined ladies’ and men’s
Floor plan: 10-ft combined ladies’ and men’s toilet container 2,991 × 2,438 × 2,791 mm 7.3 m²
CHV-150WCD 10 ft / 3 m
Ladies’
Floor plan: 10-ft ladies’ toilet container 2,991 × 2,438 × 2,791 mm 7.3 m²
CHV-150WCH 10 ft / 3 m
Men’s
Floor plan: 10-ft men’s toilet container 2,991 × 2,438 × 2,791 mm 7.3 m²
CHV-150WCB 10 ft / 3 m
Accessible
Floor plan: 10-ft accessible toilet container 2,991 × 2,438 × 2,791 mm 7.3 m²
CHV-300WCDH 20 ft / 6 m
Combined ladies’ and men’s
Floor plan: 20-ft combined ladies’ and men’s toilet container 6,058 × 2,438 × 2,791 mm 15 m²
CHV-300WCD 20 ft / 6 m
Ladies’
Floor plan: 20-ft ladies’ toilet container 6,058 × 2,438 × 2,791 mm 15 m²
CHV-300WCH 20 ft / 6 m
Men’s
Floor plan: 20-ft men’s toilet container 6,058 × 2,438 × 2,791 mm 15 m²

Exact internal dimensions and fixture positions depend on the selected
configuration. CHV confirms the applicable layout when preparing the offer.

Standard equipment by sanitary-container model

Compare the principal sanitary layouts below. Heating and hot-water equipment are
optional across the complete range; the final equipment schedule is confirmed for the
selected configuration.

5-ft CHV toilet cabin interior layout 10-ft CHV sanitary-container interior layout 20-ft CHV sanitary-container interior layout
CHV-060WC CHV-150WC CHV-300WC
5 ft / 1.45 m
Single WC cabin
10 ft / 3 m 20 ft / 6 m
Single cabin Combined Ladies’ Men’s Combined Ladies’ Men’s
One WC, washbasin with mirror and sanitary window Configuration-specific sanitary fixtures, confirmed with the selected layout Five WC cubicles, three washbasins with mirrors, three urinals and two privacy screens Five WC cubicles and three washbasins with mirrors Four WC cubicles, two washbasins with mirrors, three urinals and three privacy screens
One external door Two external doors One external door One external door Two external doors and five internal WC doors One external door and five internal WC doors One external door and four internal WC doors
One sanitary window Two sanitary windows Three sanitary windows
Connection arrangement confirmed for the selected unit Site water and wastewater connections
Electrical specification confirmed for the selected unit 400 V / 32 A five-pin CEE inlet and outlet, distribution board, lighting, switches and sockets
Optional: heating and hot-water equipment

Additional configurations

CONFIGURATION LAYOUT BASIS
10-ft accessible Internal layout and access solution confirmed for the intended site and user requirements.
20-ft accessible Project-specific internal layout and access solution, confirmed before supply.
20-ft urinal Two urinal troughs, two washbasins, two sanitary windows and standard water/wastewater connections.

Heating and hot-water equipment are optional. The final equipment schedule is
confirmed for the selected configuration.

5-ft CHV toilet cabin interior layout 10-ft CHV sanitary-container interior layout
CHV-060WC CHV-150WC
5 ft / 1.45 m
Single WC cabin
10 ft / 3 m
Single cabin Combined Ladies’ Men’s
One WC, washbasin with mirror and sanitary window Configuration-specific sanitary fixtures, confirmed with the selected layout
One external door Two external doors One external door One external door
One sanitary window Two sanitary windows
Connection and electrical specification confirmed for the selected unit Site water/wastewater connections; 400 V / 32 A five-pin CEE inlet and outlet, distribution board, lighting, switches and sockets
Optional: heating and hot-water equipment

10-ft accessible: internal layout and access solution are confirmed
for the intended site and user requirements.

Heating and hot-water equipment are optional. The final equipment schedule is
confirmed for the selected configuration.

20-ft CHV sanitary-container interior layout
CHV-300WC
20 ft / 6 m
Combined Ladies’ Men’s
Five WC cubicles, three washbasins with mirrors, three urinals and two privacy screens Five WC cubicles and three washbasins with mirrors Four WC cubicles, two washbasins with mirrors, three urinals and three privacy screens
Two external doors and five internal WC doors One external door and five internal WC doors One external door and four internal WC doors
Three sanitary windows
Site water/wastewater connections; 400 V / 32 A five-pin CEE inlet and outlet, distribution board, lighting, switches and sockets
Optional: heating and hot-water equipment

Additional 20-ft configurations

Accessible Project-specific internal layout and access solution, confirmed before supply.
Urinal Two urinal troughs, two washbasins, two sanitary windows and standard water/wastewater connections.
