ISO Shipping Containers
One-trip ISO shipping containers in 20-ft and 40-ft configurations
Good-as-new units for transport, storage and conversion projects
A proven container platform, configured for the job
CHV supplies one-trip ISO shipping containers in the established 20-ft and 40-ft formats. One-trip units are the closest available equivalent to new: they have made a single journey from the factory and arrive in Europe in good-as-new condition. Their weathering-steel construction, standardized handling points and valid CSC approval make them a dependable basis for intermodal transport, secure storage and purpose-built conversions.

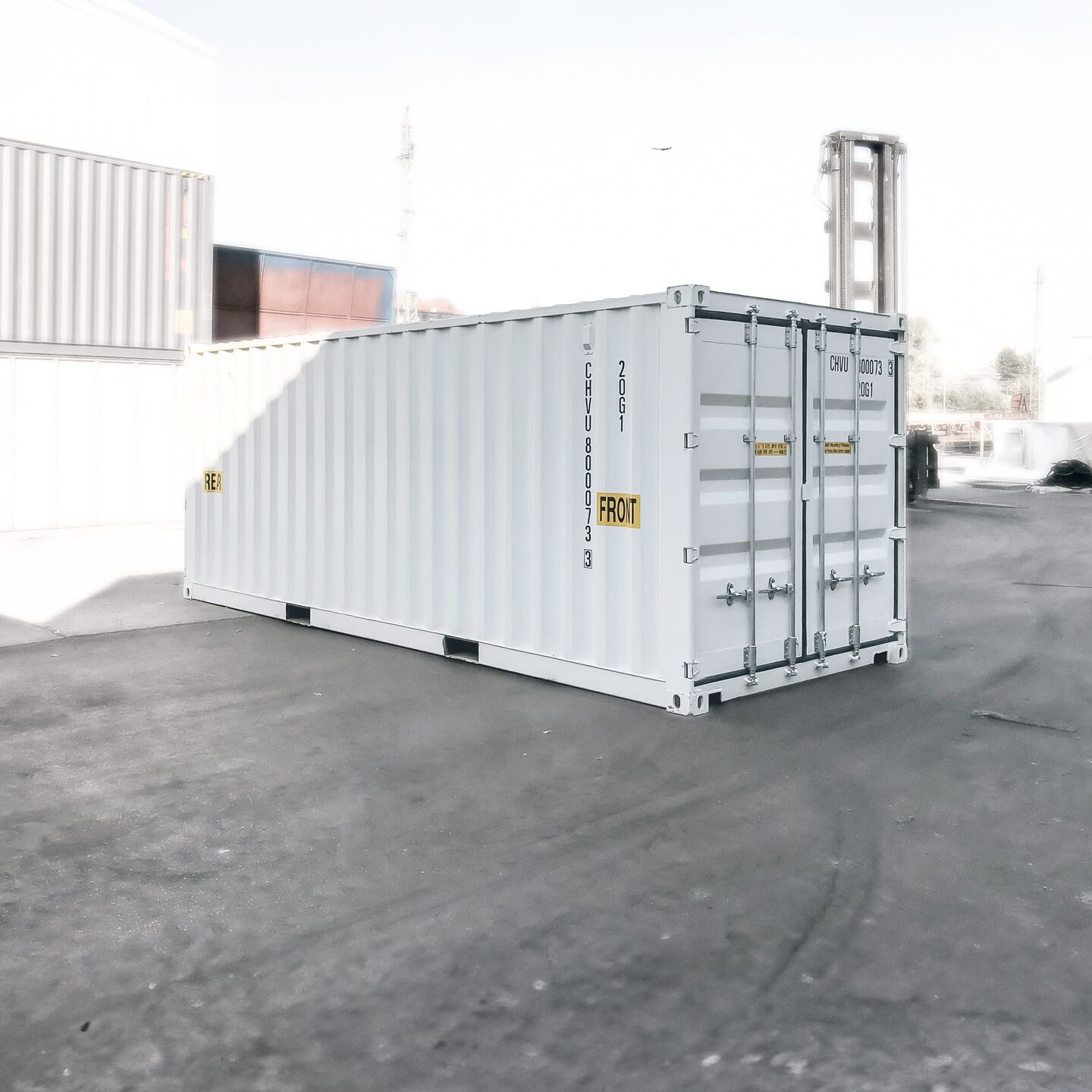

20-ft shipping containers: compact, versatile and widely compatible
The 20-ft ISO shipping container is the compact standard for freight, storage and conversion projects. The Dry Van measures 6,058 × 2,438 × 2,591 mm externally and provides approximately 33.1 m³ of internal volume. The 20-ft range also includes Low Cube, High Cube, Double Door and Open Side versions, allowing access, height and capacity to be matched more closely to the application.

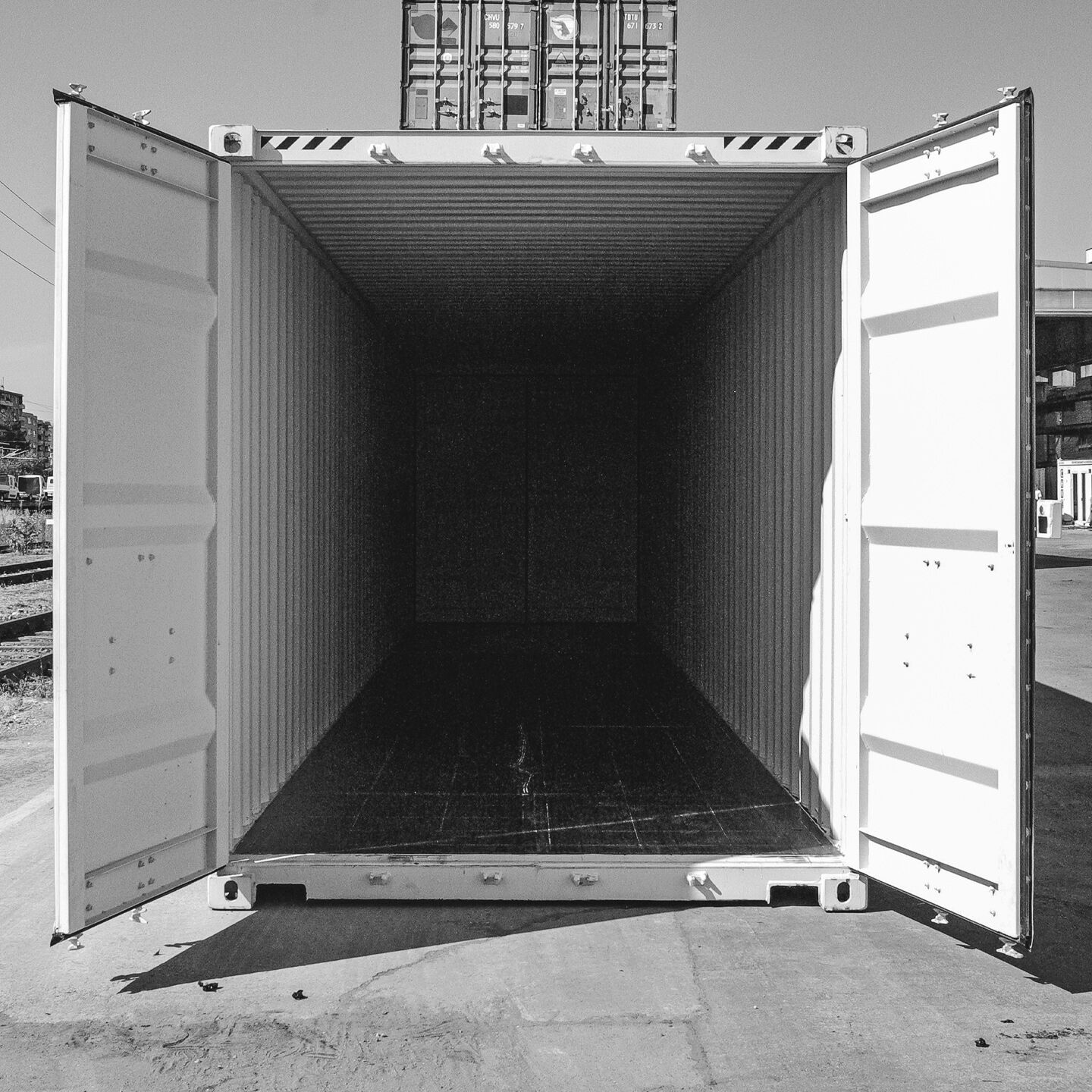

40-ft shipping containers: greater capacity for larger volumes
The 40-ft ISO shipping container provides substantially more internal capacity while retaining standardized ISO handling and transport characteristics. The Dry Van measures 12,192 × 2,438 × 2,591 mm externally and offers approximately 67.7 m³ of volume. High Cube and High Cube Double Door versions add internal height or access from both ends for bulkier loads and more demanding operating layouts.
Eight configurations across five established container types
- Dry Van: The standard enclosed shipping container for dry freight, secure storage and conversion projects. Available in 20-ft and 40-ft formats.
- Low Cube: A 20-ft container with a reduced external height of 2,438 mm for sites and transport routes with tighter height restrictions.

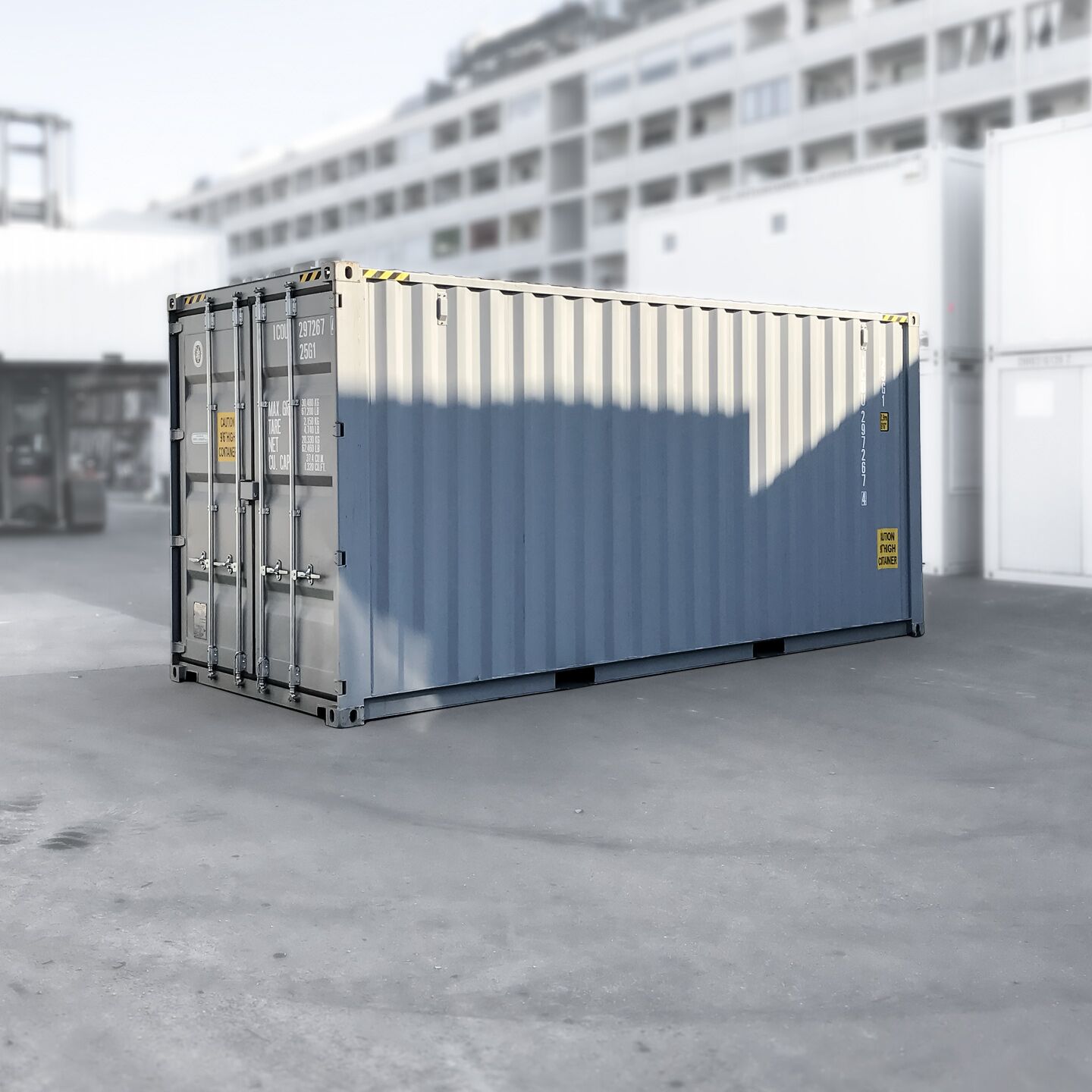

- High Cube: Additional internal height for bulky goods, higher storage density or conversions requiring more service space. Available in 20-ft and 40-ft formats.

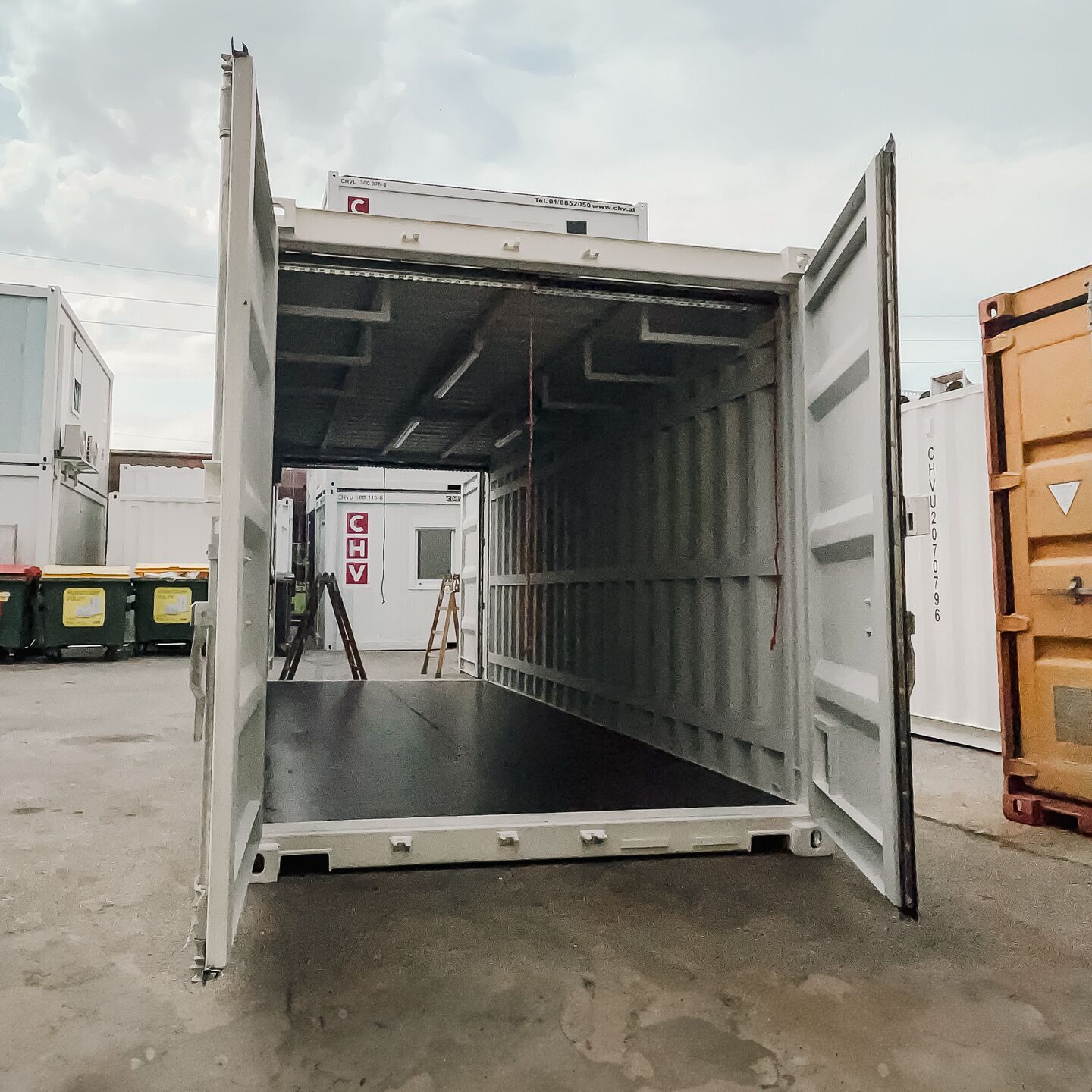

- Double Door: Doors at both ends provide through access and simplify the handling of long or awkward loads. Available as a 20-ft Double Door and a 40-ft High Cube Double Door.

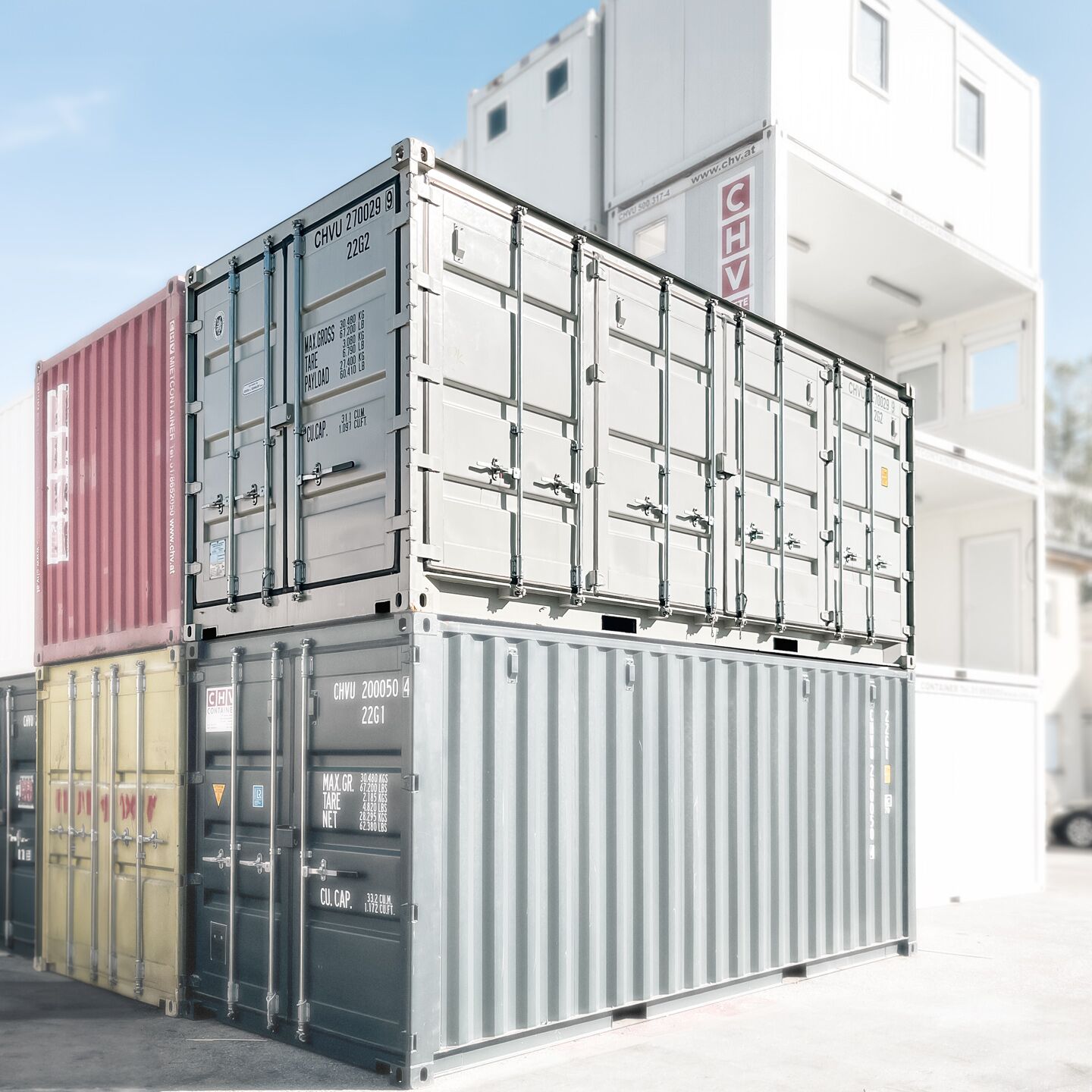

- Open Side: The 20-ft version opens along the long side, providing direct access across most of the container length for equipment, pallets and project-specific uses.
What defines a one-trip ISO shipping container
- Good-as-new, one-trip condition: Produced for a single journey from the factory and supplied ready for its next transport, storage or conversion task.
- Valid CSC approval: Every unit in this range carries the approval required for intermodal transport.
- Weathering-steel construction: The corrugated steel shell is designed for demanding transport and outdoor operating conditions.
- Secure access: Robust locking systems protect the cargo area; the 20-ft Dry Van includes a 3-bar Easy-Open mechanism and lockbox.
- Durable 28 mm floor: A heavy-duty plywood floor is supported by steel cross-members; checker-plate flooring is available for suitable applications.
- Standardized handling: Corner castings and forklift pockets support efficient lifting, positioning and integration into logistics workflows.
From standard container to application-specific solution
An ISO shipping container can remain a straightforward transport or storage unit, or become the robust starting point for a more specialized installation. CHV can coordinate modifications and equipment around the intended use:
- Storage equipment: Shelving and racking systems for organized, accessible use of the interior.
- Electrical and climate equipment: Lighting, sockets, distribution, ventilation, heating or cooling for operational applications.
- Structural modifications: Additional doors, windows, insulation, internal finishes and protective coatings.
- Technical integration: Project-specific linings and equipment for plant engineering, infrastructure and controlled technical environments.
Explore what is possible with custom technical containers.
Choose the right ISO container with CHV
The correct choice depends on more than length alone. Access, internal height, payload, loading method and the unit’s future use all influence which configuration is most practical. CHV can help compare the eight available models and coordinate accessories, modifications, transport and placement. One-trip and used units are available through our Vienna depot for commercial, industrial and project requirements.
Specialist shipping-container builds in practice
A standard ISO shipping container can also provide the structural basis for a purpose-built solution. The examples above show how additional access, electrical systems, insulation, sanitary equipment and interior fit-out can be integrated around a specific operational requirement. Explore more custom-container projects.
ISO Shipping Container Specifications and Equipment
| Dimensions / Model | CHV-20GN | CHV-20LCGN | CHV-20HCGN | CHV-20DDGN | CHV-20OSGN |
|---|---|---|---|---|---|
| Model | 20′ Dry Van | 20′ Low Cube | 20′ High Cube | 20′ Double Door | 20′ Open Side |
| Container size | 20 ft | 6 m Shipping container | Freight container | ISO container | ||||
| External dimensions in mm | 6,058 × 2,438 × 2,591 | 6,058 × 2,438 × 2,438 | 6,058 × 2,438 × 2,896 | 6,058 × 2,438 × 2,591 | 6,058 × 2,438 × 2,591 |
| Internal height in mm | 2,393 | 2,240 | 2,695 | 2,302 | 2,302 |
| Tare weight in kg | 2,230 | 2,150 | 2,360 | 2,310 | 3,080 |
| Maximum gross weight in kg | 30.480 | 30.480 | 30.480 | 24,000 | 30.480 |
| Payload in kg | 28,250 | 28,330 | 28,120 | 21,690 | 27,400 |
| Volume in m³ | 33.1 | 31 | 37.3 | 32.8 | 30.4 |
| Dimensions / Model | CHV-40GN | CHV-40HCGN | CHV-40HCDDGN |
|---|---|---|---|
| Model | 40′ Dry Van | 40′ High Cube | 40′ High Cube Double Door |
| Container size | 40 ft | 12 m Shipping container | Freight container | ISO container | ||
| External dimensions in mm | 12,192 × 2,438 × 2,591 | 12,192 × 2,438 × 2,896 | 12,192 × 2,438 × 2,896 |
| Internal height in mm | 2,393 | 2,695 | 2,695 |
| Tare weight in kg | 3,740 | 4,020 | 4,050 |
| Maximum gross weight in kg | 30.480 | 30.480 | 30.480 |
| Payload in kg | 26,740 | 26,460 | 26,430 |
| Volume in m³ | 67.7 | 76.4 | approx. 76.4 |
| Equipment / Model | CHV-20GN | CHV-20LCGN | CHV-20HCGN, CHV-40GN & CHV-40HCGN | CHV-20DDGN & CHV-40HCDDGN | CHV-20OSGN |
|---|---|---|---|---|---|
| Door | Steel double-leaf container door with 3-bar Easy-Open locking system and lockbox | Steel double-leaf container door with model-specific locking system and lockbox | Steel double-leaf container door with configuration-specific locking system and lockbox | Double-leaf doors at both ends with a configuration-specific locking system | Full-length side opening with multiple double-leaf doors, depending on configuration |
| Floor | 28 mm plywood • Optional 3+1 mm steel checker plate at additional cost | ||||
| Forklift pockets | 3 mm steel profile • Dimensions: 1,150 mm center spacing, 355 × 95 mm clear opening | ||||
| Bottom frame | Cold-formed longitudinal and cross-members • Side rails: 32 × 155 × 50 × 3 mm • Floor cross-members: C-profiles 35 × 100 × 60 × 2.5 mm | ||||
| Corner castings | 8 welded corner castings made from 5 mm steel plate • Cast-steel corner fittings optionally available at additional cost | ||||
| Roof | Roof frame made from 80 × 40 mm box sections • Roof panels made from 1.2 mm cold-formed, welded, corrugated steel sheet | ||||
| Corner posts | Front corner posts made from 3 mm cold-formed steel profiles • Rear corner posts made from 2 mm cold-formed steel profiles | ||||
| Walls | Side and end walls made from welded 1.2 mm corrugated steel sheet • Corrugation depth 34 mm • Up to four passive vents per long side below the roof frame | ||||
| Dimensions / Model | CHV-20GN | CHV-20LCGN |
|---|---|---|
| Model | Dry Van | Low Cube |
| Size | 20 ft | 6 m | |
| External dimensions in mm | 6,058 × 2,438 × 2,591 | 6,058 × 2,438 × 2,438 |
| Internal height in mm | 2,393 | 2,240 |
| Tare weight in kg | 2,230 | 2,150 |
| Maximum gross weight in kg | 30.480 | 30.480 |
| Payload in kg | 28,250 | 28,330 |
| Volume in m³ | 33.1 | 31 |
| Dimensions / Model | CHV-20HCGN | CHV-20DDGN | CHV-20OSGN |
|---|---|---|---|
| Model | High Cube | Double Door | Open Side |
| Size | 20 ft | 6 m | ||
| External dimensions in mm | 6,058 × 2,438 × 2,896 | 6,058 × 2,438 × 2,591 | 6,058 × 2,438 × 2,591 |
| Internal height in mm | 2,695 | 2,302 | 2,302 |
| Tare weight in kg | 2,360 | 2,310 | 3,080 |
| Maximum gross weight in kg | 30.480 | 24,000 | 30.480 |
| Payload in kg | 28,120 | 21,690 | 27,400 |
| Volume in m³ | 37.3 | 32.8 | 30.4 |
| Equipment / Model | CHV-20GN | CHV-20LCGN | CHV-20HCGN |
|---|---|---|---|
| Door | Steel double-leaf container door with 3-bar Easy-Open locking system and lockbox | Steel double-leaf container door with model-specific locking system and lockbox | Steel double-leaf container door with configuration-specific locking system and lockbox |
| Floor | 28 mm plywood • Optional 3+1 mm steel checker plate at additional cost | ||
| Forklift pockets | 3 mm steel profile • Dimensions: 1,150 mm center spacing, 355 × 95 mm clear opening | ||
| Bottom frame | Cold-formed longitudinal and cross-members • Side rails: 32 × 155 × 50 × 3 mm • Floor cross-members: C-profiles 35 × 100 × 60 × 2.5 mm | ||
| Corner castings | 8 welded corner castings made from 5 mm steel plate • Cast-steel corner fittings optionally available at additional cost | ||
| Roof | Roof frame made from 80 × 40 mm box sections • Roof panels made from 1.2 mm cold-formed, welded, corrugated steel sheet | ||
| Corner posts | Front corner posts made from 3 mm cold-formed steel profiles • Rear corner posts made from 2 mm cold-formed steel profiles | ||
| Walls | Side and end walls made from welded 1.2 mm corrugated steel sheet • Corrugation depth 34 mm • Up to four passive vents per long side below the roof frame | ||
| Equipment / Model | CHV-20DDGN | CHV-20OSGN |
|---|---|---|
| Door | Double-leaf doors at both ends with a configuration-specific locking system | Full-length side opening with multiple double-leaf doors, depending on configuration |
| Floor | 28 mm plywood • Optional 3+1 mm steel checker plate at additional cost | |
| Forklift pockets | 3 mm steel profile • Dimensions: 1,150 mm center spacing, 355 × 95 mm clear opening | |
| Bottom frame | Cold-formed longitudinal and cross-members • Side rails: 32 × 155 × 50 × 3 mm • Floor cross-members: C-profiles 35 × 100 × 60 × 2.5 mm | |
| Corner castings | 8 welded corner castings made from 5 mm steel plate • Cast-steel corner fittings optionally available at additional cost | |
| Roof | Roof frame made from 80 × 40 mm box sections • Roof panels made from 1.2 mm cold-formed, welded, corrugated steel sheet | |
| Corner posts | Front corner posts made from 3 mm cold-formed steel profiles • Rear corner posts made from 2 mm cold-formed steel profiles | |
| Walls | Side and end walls made from welded 1.2 mm corrugated steel sheet • Corrugation depth 34 mm • Up to four passive vents per long side below the roof frame | |
